ESP32 EtherNet/IP Scanner

Overview

An ESP32-P4 EtherNet/IP scanner implementation that provides explicit messaging capabilities for communicating with industrial EtherNet/IP devices. This project enables ESP32 devices to act as EtherNet/IP scanners, discovering devices on the network and reading/writing assembly data.

The scanner is specifically designed for the Waveshare ESP32-P4 Dev Kit (or compatible ESP32-P4 board) with Ethernet connectivity. It provides a complete solution for communicating with industrial EtherNet/IP devices using explicit messaging, with optional support for Micro800 PLC tag operations and Motoman robot CIP classes.

Key Features

• Device Discovery: Scan the network for EtherNet/IP devices using UDP broadcast
• Assembly I/O: Read and write assembly data using TCP-based explicit messaging
• Tag Support: Read and write tags on Micro800 PLCs using symbolic names (20 CIP data types supported)
• Motoman Robot Support: Read/write robot status, I/O signals, variables, and registers via vendor-specific CIP classes
• Implicit Messaging: Real-time Class 1 I/O data exchange for time-critical applications
• Web Interface: Built-in web UI for device configuration and monitoring
• Network Configuration: DHCP and static IP support with NVS persistence
• Thread-Safe: All operations protected with mutexes for concurrent access

Hardware Platform

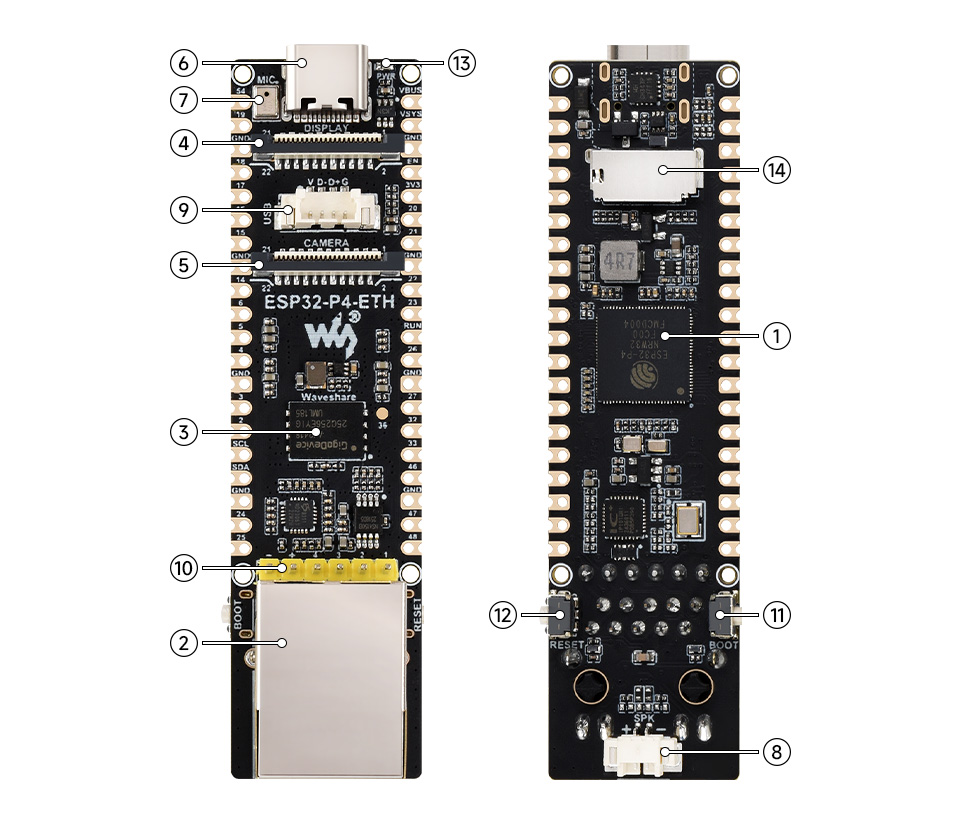

This project targets the Waveshare ESP32-P4 Dev Kit with the following specifications:

• Microcontroller: ESP32-P4 (Espressif)
• Development Board: Waveshare ESP32-P4 Dev Kit (or compatible)
• Ethernet PHY: IP101 (10/100 Mbps)
• Ethernet Configuration: MDC GPIO31, MDIO GPIO52, REF_CLK GPIO50, PHY Reset GPIO51

Core Functionality

• EtherNet/IP explicit messaging (TCP port 44818)
• EtherNet/IP implicit messaging (UDP port 2222, Class 1 I/O)
• Device discovery via UDP List Identity requests
• Assembly read/write operations
• Assembly instance discovery
• Session management (automatic)

Tag Operations (Optional)

When enabled, the scanner supports tag read/write for Micro800 series PLCs:

• Support for 20 CIP data types via API
• 6 data types via web UI (BOOL, SINT, INT, DINT, REAL, STRING)
• Symbolic tag name support (e.g., "MyTag", "MyArray[0]")

Motoman Robot Support (Optional)

Complete support for all 18 Motoman CIP classes:

• Robot status reading (Class 0x72) - Running, Error, Hold, Alarm, Servo On
• Alarm reading (Classes 0x70, 0x71) - Current alarm and alarm history
• Job information (Class 0x73) - Active job name, line number, step, speed override
• Axis configuration (Class 0x74) - Axis coordinate names
• Robot position (Class 0x75) - Current robot position with configuration
• Position deviation (Class 0x76) - Deviation of each axis
• Torque (Class 0x77) - Torque of each axis
• I/O signal read/write (Class 0x78) - General Input/Output, Network I/O
• Register read/write (Class 0x79)
• Variable access - Byte (B), Integer (I), Double (D), Real (R), String (S) types
• Position variables - Robot (P), Base (BP), External axis (EX) position types

Testing Status: Read operations validated on a live Motoman DX200 controller; write operations not yet tested.

Web Interface

After the device boots and obtains an IP address, access the web interface at http://<device-ip>/:

• Device Discovery: Scan network for EtherNet/IP devices and read/write assembly data
• Read Tag: Read tags from Micro800 PLCs using symbolic names
• Write Tag: Write tags to Micro800 PLCs (supports BOOL, SINT, INT, DINT, REAL, STRING types)
• Implicit Messaging: Connection management for Class 1 I/O
• Network Configuration: Configure DHCP or static IP settings with NVS persistence
• Real-time Device Status: Monitor connection status and device information

Software Requirements

• ESP-IDF: Version 5.0 or later
• CMake: 3.16 or later
• Python: 3.6 or later (for ESP-IDF tools)

Example Applications

The repository includes complete example code demonstrating:

• GPIO I/O Mapping: Reading input assemblies and controlling GPIO outputs based on assembly data
• Bidirectional Translator: Micro800 PLC ↔ Motoman Robot translator application
• Pick-and-Place Application: Example demonstrating bidirectional translation patterns

Note: Examples are untested demonstration code - use as reference for your own implementation.
