ESP32 MSSQL Client

Overview

A complete ESP-IDF application for connecting ESP32 devices to Microsoft SQL Server databases. This project provides a complete solution for ESP32 devices to connect to Microsoft SQL Server databases, including a C/C++ client library wrapping the tdslite TDS protocol implementation, NVS-based credential storage with password obfuscation, and a web-based configuration interface.

The application automatically starts a web server when SQL credentials are not configured, allowing easy setup via a web browser. Once configured, the device can execute SQL queries (INSERT, UPDATE, DELETE, DDL statements) and store data directly in SQL Server databases.

Architecture

The project consists of the following components:

• ESP32_MSSQLClient: A C/C++ client library wrapping the tdslite TDS protocol implementation
• sql_credentials: NVS-based credential storage with password obfuscation
• web_server: HTTP server with web UI for configuring SQL credentials
• Main Application: Example application demonstrating WiFi connection, credential management, and SQL operations

Key Features

• Direct connection to Microsoft SQL Server: Uses the TDS (Tabular Data Stream) protocol
• Web-based credential configuration UI: Easy setup without code changes
• Secure credential storage: Credentials stored in NVS (Non-Volatile Storage) with password obfuscation
• Test connection functionality: Verify connectivity without saving credentials
• Automatic reconnection handling: Robust error handling and reconnection logic
• Thread-safe web server implementation: Safe concurrent access
• WiFi integration: Automatic reconnection handling for WiFi connectivity
• Comprehensive error handling: Detailed error messages and logging
• ESP-IDF v5.x compatible: Built for modern ESP-IDF versions

Hardware Requirements

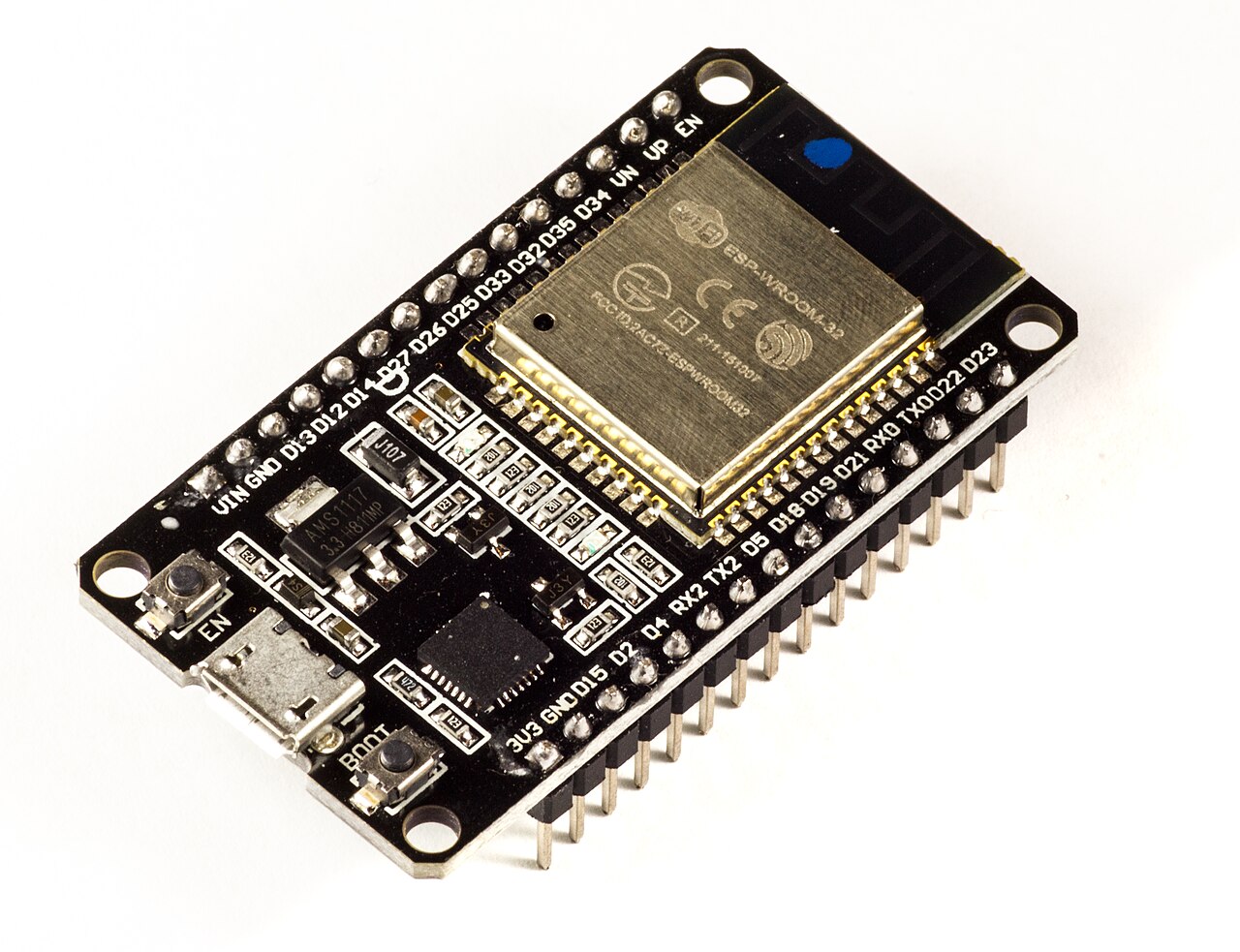

• ESP32 development board: ESP32, ESP32-S2, ESP32-S3, ESP32-C3, etc. (Espressif)
• WiFi connectivity: WiFi network for device connectivity (not Ethernet)
• Microsoft SQL Server: SQL Server with TCP/IP enabled (default port 1433)

Software Requirements

• ESP-IDF: Version 5.0 or later
• tdslite: TDS protocol implementation (included as component)
• C/C++ development environment: VS Code, Eclipse, etc. recommended

Configuration

Initial Setup via Web UI

1. Flash the application to your ESP32
2. Connect the device to WiFi (configured in main/main.c)
3. Wait for the device to start and connect to WiFi
4. Check serial monitor for the web server IP address
5. Open the IP address in a web browser
6. Fill in SQL Server credentials (server, port, database, username, password)
7. Click Test to verify connection (optional)
8. Click Save to store credentials
9. Device will reboot automatically after saving

Manual Configuration (Programmatic)

You can also configure credentials programmatically using the sql_credentials component API.

Usage

Basic SQL Operations

After credentials are configured, the device will automatically:

• Load credentials from NVS on boot
• Connect to SQL Server
• Create a SensorData table (if it doesn't exist)
• Periodically insert sensor readings

Supported Query Types

The client supports the following SQL operations:

• INSERT: Insert data into tables
• UPDATE: Update existing records
• DELETE: Delete records
• DDL Statements: CREATE TABLE, ALTER TABLE, etc.

Note: This function does NOT return result sets. Use only for INSERT, UPDATE, DELETE, and DDL statements.

API Documentation

ESP32_MSSQLClient API

Key functions provided by the client library:

• esp32_mssql_client_create() - Create a new MSSQL client instance
• esp32_mssql_client_connect() - Connect to SQL Server with credentials
• esp32_mssql_client_execute_query() - Execute a SQL query (INSERT, UPDATE, DELETE, DDL)
esp32_mssql_client_set_timeout() - Set connection and operation timeout
• esp32_mssql_client_is_connected() - Check if client is currently connected
• esp32_mssql_client_disconnect() - Disconnect from SQL Server
• esp32_mssql_client_destroy() - Destroy client instance and free resources

SQL Credentials API

• sql_credentials_load() - Load credentials from NVS
• sql_credentials_save() - Save credentials to NVS
• sql_credentials_clear() - Clear all stored credentials
• sql_credentials_is_valid() - Validate credential structure

Security Considerations

Password Storage

Passwords are obfuscated before storage in NVS using a simple XOR cipher. This provides:

• NOT encryption: Passwords are obfuscated, not encrypted
• Basic protection: Protection against casual inspection of NVS contents
• Production note: For production use, consider implementing proper encryption

Network Security

• The web server runs on the local network only (not exposed to internet)
• No authentication on web UI (assumes trusted local network)
• For production, consider adding HTTP authentication, HTTPS/TLS, and rate limiting

WiFi vs Ethernet

Important: Unlike the other projects on this site, this client uses WiFi connectivity rather than Ethernet. This makes it suitable for applications where WiFi is preferred or required, but it is not designed for the deterministic, industrial-grade networking that Ethernet provides.

Example Application

The example application demonstrates:

• WiFi connection and automatic reconnection
• Credential loading from NVS
• SQL Server connection and query execution
• Periodic sensor data insertion into a SensorData table

License

This project is licensed under the MIT License. The project uses the tdslite library, which is also licensed under the MIT License.
